Architecture

Strum VOD is a modern, serverless Video on Demand (VOD) platform built on Cloudflare infrastructure and managed Postgres.

The monorepo (pnpm workspaces) is organized into:

• Applications:
  • apps/api-edge (Cloudflare Workers, Hono REST API + MCP Server + Edge Response Cache)
  • apps/tus-edge (Cloudflare Workers, TUS resumable upload gateway)
  • apps/transcoder (Go unified transcode worker: FFmpeg HLS ladder 360p–2160p + audio & thumbnails)
  • apps/trigger-tasks (Trigger.dev: durable task orchestration for AI pipeline, background sync, and crons)
  • apps/dashboard (Cloudflare Workers + Assets, Vite React management console)
  • apps/player (Cloudflare Pages, Vite React standalone video player)
  • apps/landing (Cloudflare Pages, Astro marketing site)
• Shared Packages:
  • packages/edge-cache (Cloudflare Cache API caches.default, native/in-memory rate limiting, media headers)
  • packages/db (Drizzle schema + Neon HTTP Postgres client)
  • packages/email (OTP & transactional email templates via Resend)
  • packages/subtitles (VTT/SRT subtitle generation & parser)
  • packages/player-ui (React player core and controls; Mux Data QoE monitoring via mux-embed, optional)
  • packages/design-tokens (Shared CSS tokens and theme variables)
  • packages/ai-providers (AI provider registry: Deepgram, Whisper, Demucs, LLMs)
  • packages/costs (Cost estimation engine)
  • packages/api-client (Typed Hono RPC client factory + unwrap helper, consumed by the dashboard)

System Overview

Browser / Client
  ├── Dashboard (CF Workers + Assets)               → Hono RPC →  apps/api-edge (vapi.usestrum.app)
  └── Player app (CF Pages)                         → REST     →  apps/api-edge
  └── Video Stream (HLS.js / Safari)                → CDN      →  Cloudflare Edge Cache / R2

Upload paths:
  Standard:  Browser ──presigned PUT──────────────────────────────────▶ R2 (strum-vod)
  Resumable: Browser ──TUS──▶ apps/tus-edge ──S3 multipart────────────▶ R2

Transcode & Orchestration pipeline:
  apps/api-edge ──triggers task──▶ apps/trigger-tasks (transcode-orchestration)
  apps/transcoder (Go) ──claims job──▶ apps/api-edge /v1/worker-agent/jobs/claim
      └─▶ download source → FFmpeg HLS ladder → presigned PUT (with Cache-Control) to R2
      └─▶ apps/api-edge /v1/worker-agent/jobs/:id/complete
          └─▶ triggers ai-pipeline task (trigger.dev) + resolves wait token + busts edge cache

Data stores & Infrastructure:
  Postgres (Neon)  — collections, assets, renditions, jobs, ai_jobs, highlights, analytics, webhooks
  Cloudflare Edge  — native Cache API (caches.default) + Tiered Cache (no external Redis)
  Cloudflare R2    — media storage (sources, HLS playlists/segments, thumbnails, AI transcripts)

Everything on Cloudflare (R2 buckets, the Dashboard and Player Workers) is deployed with wrangler — see apps/*/wrangler.toml. R2 bucket CORS is applied from the repo with pnpm r2:cors:set (config in infra/r2/); it is a bucket-level setting that must be re-applied if the bucket is ever recreated. Frontends run in local dev on Vite (http://localhost:42901 dashboard, http://localhost:42911 player).

Diagrams

Static renders of the repo's mermaid diagrams. The source of truth is the mermaid blocks in CLAUDE.md (and infra/modal-whisper/README.md), which GitHub renders directly — these PNG/SVG copies exist for contexts that can't (PDFs, printed docs, issue embeds). Keep the mermaid source canonical and regenerate rather than editing the images.

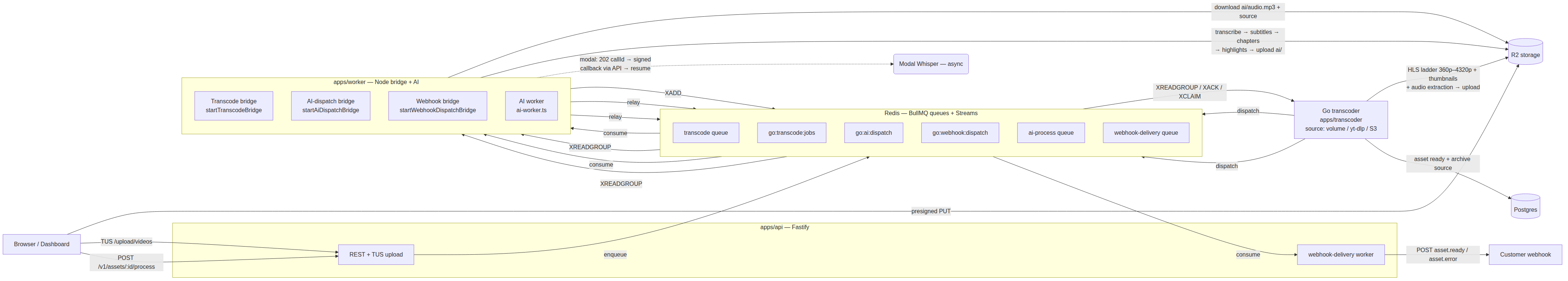

Transcode → AI → webhook pipeline

The full flow from upload (presigned PUT / TUS) to HLS delivery on R2, AI processing — including the async Modal transcription loop (dispatch → signed callback → resume) — and asset.ready/asset.error domain webhooks. Job routing is via QStash (publish → signed /qstash/* HTTP consumers).

SVG: transcode-pipeline.svg

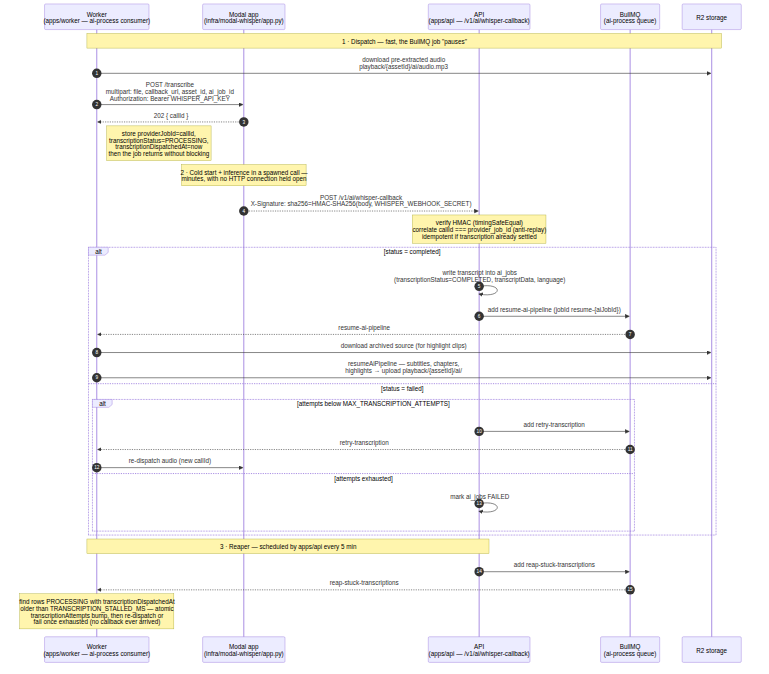

Async Modal transcription

The dispatch → 202 {callId} → cold-start/inference (spawned call) → HMAC-signed callback → resume/retry/reaper sequence for the self-hosted Modal Whisper provider (infra/modal-whisper/app.py).

SVG: modal-whisper-sequence.svg

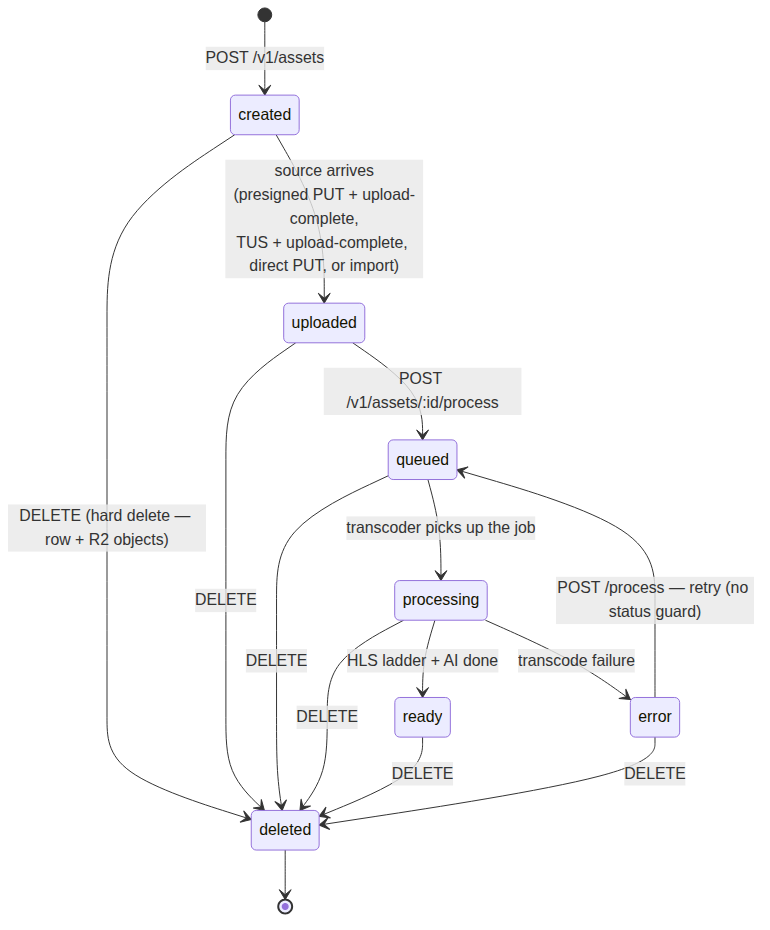

Asset lifecycle

The state machine of an asset: created → uploaded → queued → processing → ready | error, with the hard-delete terminal and the error-retry path (POST /process has no status guard).

SVG: asset-lifecycle.svg

Regenerating the images

# Requires @mermaid-js/mermaid-cli (headless Chrome via puppeteer):
#   npm i -g @mermaid-js/mermaid-cli
# GitHub Actions runners also need --no-sandbox:
#   echo '{"args":["--no-sandbox","--disable-setuid-sandbox"]}' > puppeteer.json

# 1. Extract the ```mermaid block to a .mmd file:
#    CLAUDE.md block 1 → transcode-pipeline, block 2 → modal-whisper-sequence,
#    block 3 → asset-lifecycle
awk -v T=1 '/^```mermaid$/{n++; f=(n==T); next} /^```$/{if(f) exit} f' CLAUDE.md > pipeline.mmd
awk -v T=2 '/^```mermaid$/{n++; f=(n==T); next} /^```$/{if(f) exit} f' CLAUDE.md > sequence.mmd
awk -v T=3 '/^```mermaid$/{n++; f=(n==T); next} /^```$/{if(f) exit} f' CLAUDE.md > asset.mmd

# 2. Render SVG + PNG (pass -w/-H from the SVG's viewBox so wide diagrams
#    aren't cropped to mermaid-cli's default 800x600 viewport)
mmdc -i pipeline.mmd -o docs/diagrams/transcode-pipeline.svg  -p puppeteer.json
mmdc -i pipeline.mmd -o docs/diagrams/transcode-pipeline.png  -p puppeteer.json -w 4247 -H 762
mmdc -i sequence.mmd -o docs/diagrams/modal-whisper-sequence.svg -p puppeteer.json
mmdc -i sequence.mmd -o docs/diagrams/modal-whisper-sequence.png -p puppeteer.json -w 785 -H 675
mmdc -i asset.mmd    -o docs/diagrams/asset-lifecycle.svg    -p puppeteer.json
mmdc -i asset.mmd    -o docs/diagrams/asset-lifecycle.png    -p puppeteer.json -w 991 -H 932

The modal sequence diagram is duplicated (intentionally) in CLAUDE.md and infra/modal-whisper/README.md; both render to the same image.

---

Apps

apps/api — REST API

Stack: Fastify + TypeScript · DB: Postgres (Neon) · Deploy: Fly.io / Docker

The central entry point for all asset management. Handles CRUD, generates presigned upload URLs, serves the resumable TUS upload endpoint, publishes transcode jobs to QStash, serves playback info, and consumes the /qstash/webhook delivery endpoint.

Key files:

• src/routes/assets.ts — asset endpoints: upload-url, upload-token, upload-complete, upload, import, process (no status guard — retry from error works), hard-delete (row + R2 objects, FK CASCADE), search, thumbnail upload/reset, downloads, audio, transcript/chapters/highlights
• src/routes/collections.ts — collections (video folders) CRUD + per-collection counts
• src/routes/tus.ts — resumable upload (/upload/videos) via @tus/server + @tus/s3-store; verifies the upload-token JWT on every request
• src/routes/ai.ts — AI job management + POST /v1/ai/whisper-callback (receives the HMAC-signed async transcription result from Modal and publishes the resume/retry jobs to the worker's /qstash/ai)
• src/routes/qstash.ts — signed QStash consumers: /qstash/webhook (delivers asset.ready, asset.error, asset.deleted, ai.completed, ai.failed via processWebhookDelivery) and /qstash/cron/* (node reaper, cost snapshots)
• src/routes/playback.ts — public /v1/playback/:playbackId resolution
• src/routes/analytics.ts / stats.ts — analytics ingestion + aggregation reads
• src/routes/orgs.ts, auth.ts, billing.ts, settings.ts (incl. the registry-metadata endpoint GET /v1/admin/settings/ai/providers), comments.ts, backups.ts, health.ts
• src/services/qstash.ts — QStash publish/schedule helpers + queue-lag reads (Events API), used by worker-status.ts
• src/db.ts — Postgres pool + raw SQL migrations (CREATE TABLE IF NOT EXISTS…)
• src/env.ts — Zod-validated env (incl. SHARED_AUTH_SECRET for TUS JWTs)

apps/worker — Node QStash consumers + AI + analytics

Stack: Node (HTTP consumers) · Deploy: Fly.io / Docker

The Node worker no longer transcodes and has no queue infrastructure — it is an HTTP server whose /qstash/* endpoints are driven by QStash (durable, retried, signature-verified). Consumers:

• /qstash/ai — the AI pipeline (handleAiJob): downloads ai/audio.mp3 + archived source from R2 and runs src/ai/process.ts: transcription (local OpenAI-compatible Whisper, Modal async dispatch + signed webhook callback with retry/reaper, or Deepgram), subtitle, chapter, and highlight-clip generation (ffmpeg still shelled out only for clip cutting), plus the translation step (ISO-639-1, context-aware sliding window ±2). The same function also handles resume-ai-pipeline, retry-transcription and the reapers by job-name.
• /qstash/cron/analytics — runAnalyticsJob aggregates player events into analytics_daily / analytics_asset_stats (retention curve, engagement score, peak hour). Quality distribution and the heatmap are not aggregated here — apps/api computes both live from analytics_events; see Real-Time Analytics.
• /qstash/cron/ai-reaper — the stuck-modal-transcription/separation reapers.
• /qstash/backup — runDbBackup (pg_dump → R2 backups bucket) + 30-day cleanup, driven by the QStash strum-vod-db-backup daily schedule.
• /qstash/org-delete — processOrgDelete (R2 + DB cleanup for deleted orgs).

QStash schedules (registered idempotently by apps/api at boot) drive the cron consumers above. AI config (TRANSCRIPTION_PROVIDER ∈ local|modal|deepgram, WHISPER_API_URL, API_PUBLIC_URL for the Modal callback target, LLM_* for chapters/highlights) lives in src/env.ts.

apps/transcoder — Go transcode ladder

Stack: Go + ffmpeg/ffprobe/yt-dlp · Deploy: Fly.io, scale-to-zero (min_machines_running=0) — woken in parallel with the worker on job enqueue (prewarmFleet), self-stopped by internal/selfstop when idle (see Deployment)

Consumes POST /qstash/jobs (QStash-published, signature-verified via internal/qstash, semaphore-limited concurrency — retries and delivery are QStash's job). Per job:

• Source resolution (3-tier): local shared volume → yt-dlp URL import → S3 fallback
• HLS ladder — 7 renditions 360p–4320p (see Transcoding Profiles), each filtered to the source's short side (FilterLadder, portrait-safe), H.264/HEVC, CPU or VA-API hardware acceleration, encoded in a single ffmpeg pass (decode once, filter_complex split, parallel HLS outputs)
• Thumbnails — poster thumbnail.jpg (25% duration) + tiled sprite sheets thumbnails/sprite_%03d.jpg (~100 thumbs per file, one ffmpeg pass)
  • thumbnails/thumbnails.vtt scrub-bar index referencing each tile
• Audio — playback audio.m4a (AAC 128k, 48kHz, stereo) and AI ai/audio.mp3 (mono 16kHz, 64k)
• Downloadable MP4 — fast remux of each rendition (download.mp4, no re-encode)
• Uploads everything to R2, marks the asset ready + archives the source, then publishes the AI dispatch to the worker's /qstash/ai and the domain event to the API's /qstash/webhook via QStash

Hardware-adaptive: auto-detects CPU/RAM (cgroup-aware) to size concurrency, ffmpeg threads, and pool sizes.

apps/dashboard — Management Dashboard

Stack: React + Vite + Tailwind CSS v4 · Deploy: Cloudflare Worker + Assets (SPA) via wrangler

Authenticated SPA for managing assets, AI configuration, and monitoring transcoding. Local dev: http://localhost:42901.

• Upload videos via presigned URL or resumable TUS (toggle in NewVideoPage.tsx)
• Import videos from external URLs
• Monitor transcoding status (polls every 5s) + AI job per-step status
• Full video management: title, description, thumbnail, AI transcript editing
• Organize videos into collections (folders)
• Settings: AI provider config (transcription provider local/Modal/Deepgram/ AssemblyAI + LLM provider + API keys — stored in settings.ai_config). The AI form is registry-driven: it renders from the serialized provider registry served by GET /v1/admin/settings/ai/providers (packages/ai-providers), so adding a provider to the registry adds it to the form with no frontend change
• Installable PWA (manifest + Workbox SW, safe-area-aware layout)
• Also serves /embed/:playbackId and /watch/:playbackId (and /player/*) on the same origin for convenience — the canonical public embeds live in the player app

API Communication — Hono RPC

All dashboard→API calls go through the typed Hono RPC client from packages/api-client, not hand-crafted fetch strings. Import from src/lib/api.ts:

import { apiClient, unwrap } from '../lib/api.js';

// GET with query params
const config = await unwrap(apiClient.v1.config.$get({}));

// POST with JSON body
const { id } = await unwrap(apiClient.v1.assets.$post({ json: { title } }));

// PATCH with URL param + JSON body
await unwrap(apiClient.v1.assets[':id'].$patch({
  param: { id },
  json: { title: 'New title' },
}));

Rules:

• Always use apiClient + unwrap for new code — never call fetch directly or use the legacy api() helper (which remains only for the raw binary thumbnail PUT)
• Hyphenated path segments must be quoted: [':id']['upload-url'], ['stem-mix'], etc.
• unwrap resolves { data: T } envelopes automatically and throws ApiError on non-2xx
• The api() raw helper is retained only for ThumbnailModal.tsx's binary upload (PUT /v1/assets/:id/thumbnail with Content-Type: image/*) — the RPC client doesn't support non-JSON request bodies
• The public player's WatchPage.tsx uses a separate api from @strum-vod/player-ui (unauthenticated, different base URL) — do not mix

packages/api-client:

• createApiClient(options) — factory wrapping hono/client's hc<AppType>, injects bearer token, handles 401→logout callback, applies a configurable timeout
• unwrap(responsePromise) — awaits a Hono RPC response, throws ApiError on error, unwraps the data envelope
• ApiError — typed error with .status (HTTP code) and .data (raw JSON)

apps/player — Public Embeddable Player

Stack: React + Vite + hls.js · Deploy: Cloudflare Pages via wrangler (pnpm deploy:player)

Standalone SPA for public video playback. No authentication, no dashboard chrome. Deployed independently so embed URLs remain stable regardless of dashboard changes. Local dev: http://localhost:42911. Installable PWA (manifest + Workbox SW).

Routes:

• /embed/:playbackId — Embeddable iframe player (minimal chrome)
• /watch/:playbackId — Full-page public watch page

Features:

• Adaptive quality selector (auto, 360p … 4320p as transcoded)
• Thumbnail seek preview (from VTT sprite)
• Subtitle/caption toggle, chapters, reactions/comments
• Fullscreen support
• Analytics heartbeat (batched, best-effort) — first-party, see Real-Time Analytics
• Mux Data QoE monitoring (mux-embed, optional — see below)

Embed in any page:

<iframe
  src="https://player.strum-vod.dev/embed/p1b2c3d4e5f6g7h8"
  width="100%" height="450"
  frameborder="0" allowfullscreen>
</iframe>

packages/db — Shared Database Layer

Stack: Drizzle ORM (pg-core) + postgres-js · DB: Postgres (Neon)

Shared schema and connection factory used by the API, the Worker, and the Go transcoder (which mirrors the constants).

• createDb(databaseUrl, poolConfig?) — postgres-js pool; auto-enables SSL for neon.tech / sslmode=require URLs, and exposes a pool.query(sql, params) compatibility wrapper that translates ? → $n placeholders
• Tables: collections, assets, renditions, jobs, ai_jobs, highlights, analytics_events, analytics_daily, analytics_asset_stats, settings, comments, reactions, users, organizations, org_members, api_keys, admin_audit_log, domain_events, webhook_deliveries, db_backups, otp_codes
• Column names use snake_case in Postgres, camelCase in TypeScript

packages/email — Transactional email (OTP)

Resend / SMTP / console providers. Sends magic login codes from services/otp.ts via sendOtpEmail.

packages/subtitles — VTT/SRT generation

generateVtt() / generateSrt() from transcript segments — used by the PATCH /v1/assets/:id/transcript route to regenerate subtitle files. NEW: translateSubtitles() — context-aware sliding window (±2) translation of VTT/SRT to multiple target languages using LLM with glossary, speaker, and video context support. Outputs per-lang .vtt/.srt + index JSON (subtitles-translations.json).

packages/player-ui & packages/design-tokens

Shared player components (VideoHeatmap, …) and brand design tokens (CSS custom properties, Tailwind @theme).

---

Upload Flows

Standard (presigned URL)

Browser                    API                      R2/S3
  │                         │                         │
  │ POST /assets/:id/        │                         │
  │   upload-url ───────────►│                         │
  │                         │ GetSignedUrl            │
  │◄─────── { uploadUrl } ──┤                         │
  │                         │                         │
  │ PUT <uploadUrl> ────────────────────────────────►  │
  │                         │                         │
  │ POST /assets/:id/        │                         │
  │   upload-complete ──────►│ HeadObject             │
  │                         │──────────────────────► │
  │◄─── { status: uploaded } ┤                         │

Resumable (TUS)

Served by apps/api itself (src/routes/tus.ts, @tus/server + @tus/s3-store) — there's no separate upload worker. Every TUS request, not just the initial POST, carries the same bearer JWT, so an in-progress upload can't be resumed/appended to without a token valid for that exact object key:

• Algorithm: HS256
• Signed and verified with SHARED_AUTH_SECRET (one secret, one process)
• aud: videos
• sub: R2 object key (e.g. sources/{assetId}/input.mp4) — also becomes the TUS upload id directly, so the finished object lands at the same key the rest of the pipeline expects, no move step
• maxLen: maximum upload size in bytes, checked against Upload-Length

Browser                    API (apps/api)                     R2
  │                         │                                  │
  │ POST /assets/:id/        │                                  │
  │   upload-token ─────────►│                                  │
  │                         │ Sign JWT                          │
  │◄──── { token, key } ────┤                                  │
  │                         │                                  │
  │ POST /upload/videos ─────►│                                  │
  │   (Authorization: Bearer <token>)                           │
  │                         │ Verify JWT, create S3 multipart ─►│
  │◄──── 201 + Location ────┤                                  │
  │                         │                                  │
  │ PATCH /upload/videos/... ►│                                  │
  │   (chunk data)          │ Verify JWT, upload part ─────────►│
  │◄──── 204 ────────────────┤                                  │
  │         (repeat)        │                                  │
  │                         │                                  │
  │ POST /assets/:id/        │                                  │
  │   upload-complete ──────►│ HeadObject ──────────────────────►│
  │◄─── { status: uploaded } ┤                                  │

---

Database Schema (Postgres)

assets

Column	Type	Description
id	VARCHAR(36)	Primary key, nanoid(12)
org_id	VARCHAR(36)	Owning organization
collection_id	VARCHAR(36)	FK → collections (SET NULL on delete)
status	VARCHAR(32)	Lifecycle state (created → uploaded → queued → processing → ready/error)
source_type	VARCHAR(32)	upload or url
source_key	VARCHAR(512)	R2 path for uploads
source_url	VARCHAR(2048)	URL for imports
title	VARCHAR(255)	Display name
playback_id	VARCHAR(64)	Unique playback ID, nanoid(16)
metadata / custom_metadata / public_settings	JSONB	Flexible payloads
custom_thumbnail_key	VARCHAR(512)	Override thumbnail
duration_sec	INT	Duration in seconds
error_message	VARCHAR(1024)	Error details
audio_codec / audio_bitrate_kbps / audio_sample_rate / audio_channels / audio_path / audio_file_size_bytes	—	Playback audio track metadata
ai_audio_path	VARCHAR(1024)	Extracted Whisper input (ai/audio.mp3)
created_at / updated_at	TIMESTAMP	Timestamps

renditions

Column	Type	Description
id	VARCHAR(36)	Primary key
asset_id	VARCHAR(36)	FK → assets (CASCADE)
quality	VARCHAR(32)	360p, 480p, 720p, 1080p, 1440p, 2160p, 4320p
width / height	INT	Resolution
bitrate_kbps	INT	Video bitrate
file_size_bytes	INT	Output size
codec	VARCHAR(32)	h264 (or hevc with VA-API)
hw_accel	INT	Whether VA-API was used
playlist_path	VARCHAR(1024)	R2 path to the rendition playlist

jobs

Column	Type	Description
id	VARCHAR(36)	Primary key, nanoid(12)
asset_id	VARCHAR(36)	FK → assets (CASCADE)
type	VARCHAR(32)	transcode, ai_process
status	VARCHAR(32)	queued, processing, completed, failed
current_step	VARCHAR(64)	Progress step (probing, transcoding_*, upload, AI, …)
attempts	INT	Retry count
error_message	VARCHAR(1024)	Failure details
worker_id / worker_kind / hostname / region	—	Fleet attribution (node vs go)
cpu_cores / total_mem_gb / hw_accel_used	—	Hardware metadata
started_at / duration_ms	—	Runtime metrics

ai_jobs (AI pipeline)

Per-asset AI processing with per-step status columns: transcription_status, subtitles_status, chapters_status, highlights_status, smart_metadata_status, subtitle_translation_status (each pending → processing → completed/failed/skipped). Output paths in R2: transcript_path (ai/transcript.json), subtitles_path (ai/subtitles.vtt), srt_subtitles_path, chapters_path, plus transcript_text/transcript_data for inline serving. NEW: Translation columns:

• subtitle_translations (JSONB) — { [lang]: { vttPath, srtPath, status, qualityScore? } }
• translation_target_langs (text[]) — requested target languages
• subtitle_translation_status — overall translation step status For the Modal async provider: provider_job_id (correlates the signed callback, guards replay), transcription_dispatched_at (reaper input), transcription_attempts (max 3).

Other tables

• collections — video folders (name, color, org_id; assets reference it via collection_id)
• highlights — AI highlight clips (title, time range, clip_path/thumbnail_path, dimensions)
• highlight_render_jobs — render job tracking for highlights (FKs to ai_jobs, assets, jobs, dispatch_jobs; stores validated LLM suggestions as JSONB; status: pending/running/completed/failed/cancelled). Replaces the legacy assets.metadata.highlightRender JSONB to avoid race conditions on reprocessing.
• analytics_events / analytics_daily / analytics_asset_stats — raw player events + hourly/daily rolls + per-asset aggregates

---

Highlights System (AI Highlight Clips)

Overview

Automatically generates short, self-contained highlight clips (5–180s, ideal 45–90s) from the most compelling moments in a video. Uses an LLM to identify candidate moments from the transcript, then dispatches ffmpeg clip-cutting to the unified worker fleet.

Configuration

Level	Control	Default
Global	settings.ai_auto_highlight (true/false)	true
Per-asset	POST /v1/assets/:id/process body: { "aiOptions": { "highlights": false } }	inherits global
Preset	settings.ai_config.highlightsPreset (fast/standard/deep, Admin AI Settings dropdown — instance-wide, no per-asset UI)	standard
Content type	Per-asset dropdown (AiOptionsForm) or auto-detected via one cheap classification call when unset	auto-detect
Model per step	settings.ai_config.{highlightsModel,contentTypeDetectionModel} or LLM_HIGHLIGHTS_MODEL/LLM_CONTENT_TYPE_DETECTION_MODEL env — falls back to the shared llmModel	shared llmModel
Requirements	LLM provider configured (llmProvider, llmApiKey, llmModel)	—

Preset depth (highlightsPreset)

Preset	Audio feature analysis	Visual re-scoring
fast	Skipped	Skipped
standard	Yes (silence/spectral-flux/peak-level-variance — see below)	Skipped
deep	Yes	Yes — a second pass (score-highlights task) downloads the rendered video, runs scene/face/text analysis, and re-scores the top 10 candidates before dispatch

Preset does not gate the long-video chunking below — a fast 40-minute video still runs the chunked Scout/Curator pass; the duration threshold and the preset are orthogonal knobs.

Pipeline

1. Content-type detection (discover-highlights task, both paths below): if the asset has no manually-set content type, one cheap classification call (gpt-4o-mini by default) samples the first ~25 transcript segments (≤3000 chars) and guesses podcast/gaming/educational/interview/vlog/general, feeding the content-type-specific criteria in the discovery prompt(s) below. A manual selection is never overridden.

2. Audio feature analysis (skipped under fast): downloads ai/audio.mp3, runs ffmpeg-based silenceSegments/spectralFluxPeaks/peakLevelVarianceDb extraction — all genuinely computed signal (an earlier laughterSegments/prosody-pitch implementation was removed for returning fabricated data, not real detection).

3. Discovery — two strategies by video duration:

   • < 30 min: single LLM call (generateHighlights) over the whole transcript.
   • ≥ 30 min: chunked Scout/Curator two-pass (runScoutCuratorPass) — Scout sweeps each ≤18000-char transcript chunk broadly for candidates, then Curator re-reads each candidate's own snippet and decides what ships (title/hook/score/keep), referenced back by index (never array position, since Curator drops candidates).

   Both strategies feed into clampHighlightSuggestions — dedupes candidates overlapping >50% of each other (keeping the higher-scored one), then bounds-clamps to 5–180s and caps at 8 clips — stored in highlight_render_jobs.suggestions.

4. Visual re-scoring (only under deep, score-highlights task): downloads the rendered master playlist, extracts scene-boundary/face-tracking/on-screen-text features, re-scores the top 10 candidates.

5. Dispatch: Creates RENDER_HIGHLIGHTS job + dispatch_jobs row → notifies workers via pg_notify('job_queue')

6. Render (Go worker): Downloads source → ffmpeg cuts each clip + thumbnail → uploads to R2 (playback/{assetId}/ai/highlights/{index}/)

7. Completion: Worker calls POST /v1/worker-agent/jobs/:id/complete → API inserts highlights rows, updates ai_jobs.highlightsStatus, marks highlight_render_jobs completed

Reprocessing Safety

• Before starting a new discovery, discover-highlights cancels any pending/running highlight_render_jobs for the same aiJobId
• Cancels associated dispatch_jobs and completes the wait token with cancelled
• Prevents duplicate clips / race conditions on complete

Dynamic Timeout

Wait token timeout scales with video length and clip count:

timeout = max(5min, ceil(durationMin × 0.1) + clips × 2.5min), capped at 120min

Storage Layout (R2)

playback/{assetId}/ai/highlights/
├── 0/
│   ├── clip.mp4
│   └── thumbnail.jpg
├── 1/
│   ├── clip.mp4
│   └── thumbnail.jpg
└── ...

API

Endpoint	Description
GET /v1/playback/{playbackId}/highlights	List highlight clips for player
PATCH /v1/assets/{id}/highlights/{highlightId}	Update title/description
DELETE /v1/assets/{id}/highlights/{highlightId}	Delete a highlight clip

• settings — platform settings row, keyed by org_id (branding, CORS, embed allowlist are per-org) except ai_config JSONB, which is always read/written on the global row (org_id IS NULL) — AI provider config is instance-wide, not per-org, edited from the dashboard's superadmin-only Settings → AI page
• comments / reactions — public engagement on playback_id
• users / organizations / org_members / api_keys — auth + multi-tenancy
• domain_events / webhook_deliveries — transactional outbox + delivery log for webhooks
• db_backups — backup runs (pg_dump → R2 backups)
• otp_codes — magic-link / email OTP codes

---

Storage Layout (R2)

strum-videos/
├── sources/
│   └── {assetId}/
│       └── input.mp4              ← original upload (archived after transcode)
├── playback/
│   └── {assetId}/
│       ├── master.m3u8            ← HLS master playlist (all renditions; VERSION 6,
│       │                           ←   INDEPENDENT-SEGMENTS, FRAME-RATE + measured AVERAGE-BANDWIDTH per variant)
│       ├── {quality}/             ← 360p, 480p, 720p, 1080p, 1440p, 2160p, 4320p
│       │   ├── index.m3u8
│       │   ├── segment_000.ts ...
│       │   └── download.mp4       ← fast-remux MP4 (no re-encode)
│       ├── thumbnail.jpg          ← poster at 25% duration
│       ├── thumbnails/
│       │   ├── sprite_000.jpg     ← tiled sheets, ~100 thumbs each
│       │   ├── sprite_001.jpg     ←   (5×20 grid, 5s interval, 160px thumbs)
│       │   └── thumbnails.vtt     ← scrub-bar seek preview
│       ├── audio.m4a              ← playback audio track (AAC 128k stereo)
│       └── ai/
│           ├── audio.mp3          ← mono 16kHz extract for Whisper
│           ├── transcript.json    ← Whisper/Deepgram/Modal transcript
│           ├── subtitles.vtt      ← original language
│           ├── subtitles.srt
│           ├── subtitles.en.vtt   ← translated (ISO-639-1 code)
│           ├── subtitles.en.srt
│           ├── subtitles-translations.json  ← index: { "en": { "vttPath", "srtPath", "status" } }
│           ├── chapters.json      ← AI-generated chapters
│           └── highlights/        ← AI highlight clips
attachments/                        ← org uploads (logos, custom thumbnails)
backups/                            ← pg_dump snapshots

• sources/ — Private. Only accessible via presigned URLs or TUS upload token.
• playback/ — Public read. No per-object ACLs — R2 bucket-level public access serves all files.
• S3_PUBLIC_BASE_URL controls the URL prefix prepended to HLS manifest paths.

---

Transcoding Profiles

Defined in apps/transcoder/internal/ladder/ladder.go (Ladder) — hand-mirrored from the retired apps/worker/src/transcoding.ts (no generated single source yet; keep the copies in sync by hand). FilterLadder keeps only renditions at/below the source's short side (portrait-safe), always retaining at least the lowest:

Quality	Resolution	Video Bitrate	Profile/Level	Codec
360p	640 × 360	1,000 kbps	main / 3.0	H.264
480p	854 × 480	1,800 kbps	main / 3.0	H.264
720p	1280 × 720	3,000 kbps	main / 3.1	H.264
1080p	1920 × 1080	6,000 kbps	high / 4.0	H.264
1440p	2560 × 1440	10,000 kbps	high / 5.0	H.264
2160p	3840 × 2160	20,000 kbps	high / 5.1	H.264
4320p	7680 × 4320	40,000 kbps	high / 6.0	H.264

• Segment duration: 6 seconds · Playlist type: VOD
• Keyframes: forced every 2s (force_key_frames gte(n_forced*2))
• Single pass: the whole ladder runs as one ffmpeg process (TranscodeLadder/buildLadderArgs) — the source decodes once and a filter_complex split fans the frames to one scaled branch per rendition, each writing its own HLS output
• Configurable: RENDITION_CODEC (h264|hevc), MAX_RENDITION_HEIGHT (cap the tallest rung, 0 = full 360p–4320p), HEVC_MIN_HEIGHT (hybrid ladder — rungs at/above this height encode in HEVC while lower rungs keep the base codec), FFMPEG_HWACCEL (auto|vaapi|disabled)
• Audio: one shared AAC track (128k / 48kHz / stereo, AUDIO_PLAYBACK_*) encoded in the same pass to audio/index.m3u8 and declared in master.m3u8 as an EXT-X-MEDIA AUDIO group; renditions are video-only (-an). Sources without audio (probe HasAudio=false) skip it. audio.m4a (the public download file) is derived from that track by stream copy (-c copy), so only one AAC encode happens per asset
• Encoding: libx264 (CRF 23) / libx265 (CRF 28) on CPU, or VA-API (h264_vaapi/hevc_vaapi) when hardware acceleration is available
• Timeout per ladder: max(5min, duration×4s); concurrency/threads are hardware-adaptive

---

Domain Events & Webhooks

The Go transcoder publishes domain events via QStash to apps/api's /qstash/webhook, which runs processWebhookDelivery and POSTs to the customer URL. QStash owns the retry schedule (the Go publish sets retries: 5); exhaustion lands in the QStash DLQ. Delivery is backed by the domain_events (outbox) + webhook_deliveries (log) tables with retry/attempt accounting.

Event types: asset.ready, asset.error, asset.deleted, ai.completed, ai.failed.

---

Mux Data (third-party QoE analytics, optional)

Separate from the first-party analytics below — Mux Data monitors player-side QoE (rebuffering, startup time, playback errors), not views/watch-time/retention. Not Mux Video — this project's HLS ladder is its own Go transcoder (apps/transcoder), unrelated to Mux's encoding product.

• Config — settings.mux_data_env_key column, read/written via GET/PATCH /v1/settings (apps/api-edge/src/services/settings.service.ts). Falls back to the MUX_DATA_ENV_KEY binding when no org-level key is set (services/playback.service.ts, surfaced on the playback payload as muxDataEnvKey).
• Player — packages/player-ui/src/video-player.tsx calls mux.monitor() (real mux-embed npm package, not a stub) on mount with the hls.js instance for HLS-level QoE, mux.destroyMonitor() on unmount. Wrapped in try/catch — analytics failures never break playback.
• Dashboard — key input in Settings, configured/not-configured status in the Analytics page.

Real-Time Analytics

The dashboard's per-asset analytics tab (AssetAnalytics.tsx) mixes three freshness tiers, all read from the same GET /v1/assets/:id/analytics call plus one dedicated live channel:

Metric	Source	Freshness
Views, watch time, time series, hourly breakdown	Live SQL over analytics_events	Always fresh (query re-runs every poll)
Quality distribution	Live SQL over analytics_events (GROUP BY quality_height)	Always fresh — previously came from the daily batch job (analytics_asset_stats.quality_distribution), which is no longer written
Heatmap ("most replayed")	Live SQL over analytics_events, heartbeat events only	Always fresh
Retention curve, engagement score, peak hour	analytics_asset_stats	Batch — refreshed once/day by analytics-worker.ts's aggregateDaily
Live viewer count	Redis sorted set, pushed via SSE	~3s

Heatmap bucketing — getHeatmap() in apps/api-edge/src/services/analytics.ts splits the asset's duration into a fixed 100 buckets (bucket_size = duration_sec / 100, YouTube-style — same bar count regardless of video length) and counts heartbeat events per bucket (current_time column). Only heartbeat counts as "watched here": seek marks a jump target, not dwell time, and view_start/view_end are just boundaries. No new storage — it's a GROUP BY over the same analytics_events table every other real-time stat already reads, respecting the same period filter (7d/30d/90d/all). Rendered by VideoHeatmap (@strum-vod/player-ui).

Live viewer count (SSE) — the first push-based channel in the project (everything else is REST/poll). Chosen over WebSocket because the data flow is one-directional (server → client only):

• Presence — apps/api-edge/src/services/analytics.ts's updatePresence() runs inline in insertAnalyticsEvents (best-effort, never blocks ingestion). A per-asset Redis sorted set (asset:{id}:live, member = sessionId, score = last-seen epoch seconds) is ZADDed on heartbeat/view_start and ZREMed immediately on pause/view_end/error, so the count drops the moment a viewer actually stops instead of waiting for a timeout. The key carries a TTL (2× the window) so an asset nobody's watching doesn't leak a Redis key forever. A 20s window (2× the player's 10s heartbeat interval) is only a safety net for a connection that dies without firing a final event.
• Routes — GET /v1/assets/:id/live-count (JSON snapshot) and GET /v1/assets/:id/live-stream (SSE, text/event-stream via reply.hijack() + reply.raw, same raw-response pattern as the TUS route). The stream doesn't use Redis pub/sub — each connection just polls ZCOUNT server-side every 3s and writes a data: frame. That sidesteps cross-instance fan-out entirely (Redis is already the single source of truth reachable from any API instance) at the cost of ~3s latency, which is invisible for a viewer-count widget.
• Client — apps/dashboard/src/hooks/useLiveViewerCount.ts uses @microsoft/fetch-event-source instead of the native EventSource, because the dashboard authenticates with an Authorization: Bearer header, which EventSource cannot send. Falls back to polling live-count every 5s if the stream can't be established after a few retries, so the number never just goes stale.

---

ID Conventions

Entity	Generator	Length
Asset ID	nanoid(12)	12 chars
Playback ID	nanoid(16)	16 chars
Job ID	nanoid(12)	12 chars
AI Job ID	nanoid(12)	12 chars
Highlight ID	nanoid(12)	12 chars
Analytics session	nanoid(20)	20 chars
Analytics event	nanoid(16)	16 chars
User / Org / Member / Settings	nanoid(12)	12 chars
API key	random (prefix + hash stored)	32 chars
Comment / Reaction	nanoid(16) / nanoid(12)	—
Domain event / Webhook delivery / DB backup	nanoid(16)	16 chars
